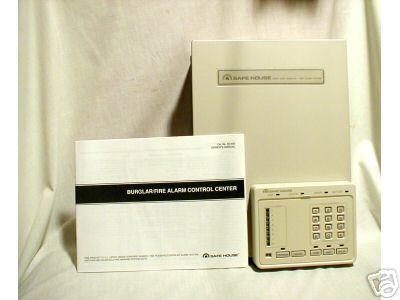

8-Zone Alarm System




  Product Description:
    This unit is a eight-zone wired security system.  The project involved updating the fire siren output circuitry and software to detect a fault (open or short) in the fire siren loop as per the latest Canadian regulatory requirements.
  Designed at:
    Tandy Electronics Design
Sold at:
    Radio Shack as  49-485A
  Credits:
    Electronics/Firmware Design - Doug Deeds
    Original Electronics/Firmware Design - Albert Straub
