Digital SWR/Power Meter



SWR/Power Meter Display
Product Description:
    This unit is a combination standing wave ratio (SWR)/power meter for use with transmitters.
It is used to check the output power and the efficiency of the power transfer to the antenna.
  Designed at:
    Tandy Electronics Design
Sold at:
    Radio Shack
Credits:
    Hardware/Software Design - Doug Deeds
    RF Design -
    Mechanical Design - Monty Curran, Morris Humphreys,
                                 Chuck Schmucker

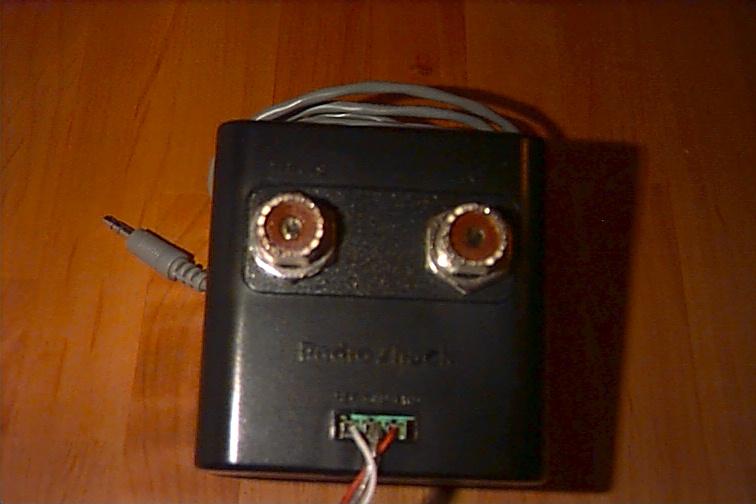

SWR/Power Meter Sensor
